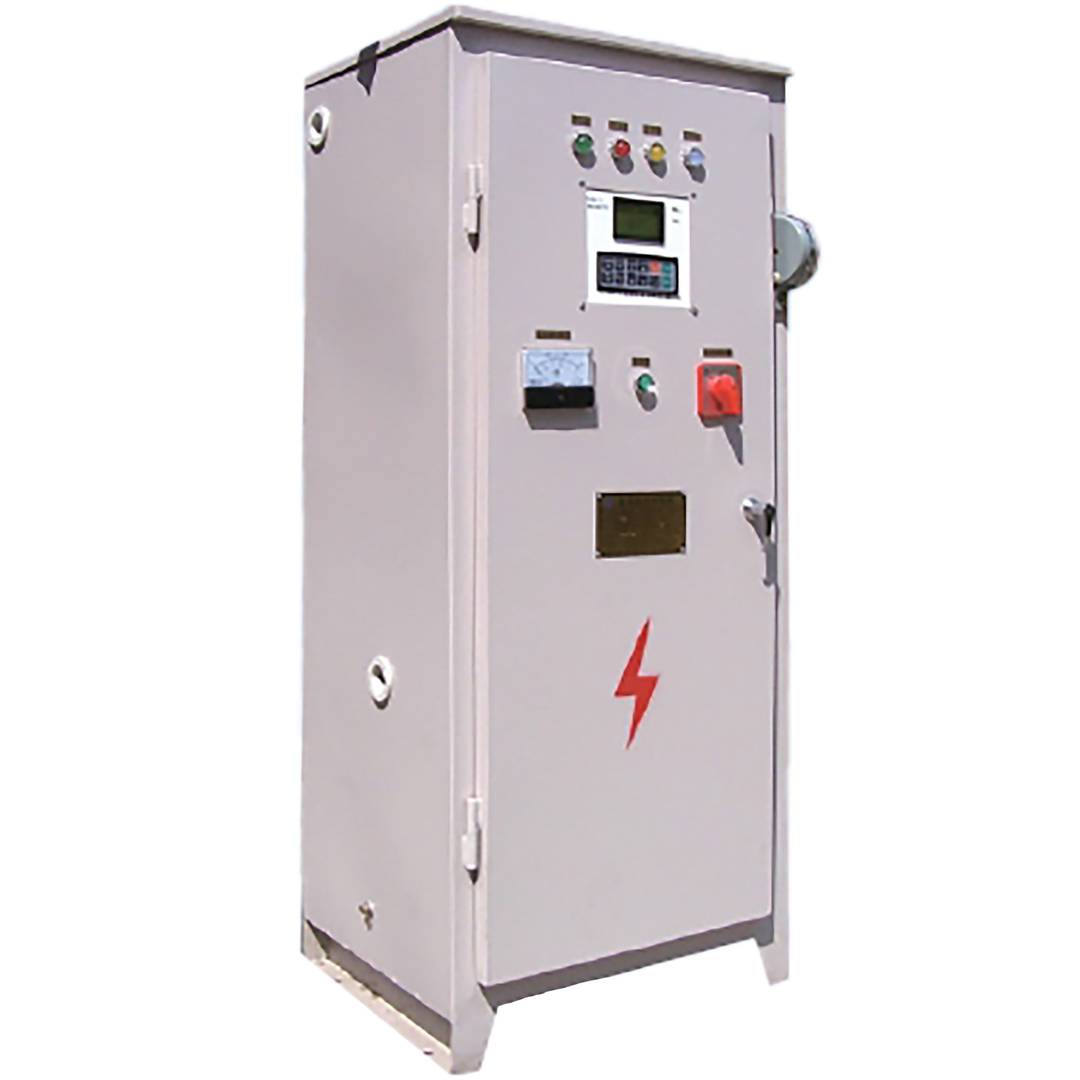

The control panel has 8 protection functions. It is capable to save the values of three. Phase current and voltage and control voltage when the ESP well shutdown and transmit to computer.
standard fixed-frequency control cabinet
| Voltage | Current | Size | Weight | ||
|---|---|---|---|---|---|
| V | A | mm | in | kg | lb |
| ≤2000 | ≤100 | 500×600×1400 | 20×24×55 | 130 | 286.5 |
| ≤3000 | ≤100 | 630×760×1650 | 25×30×65 | 171 | 376.9 |
| ≤3600 | ≤150 | 650×800×1700 | 26×31×70 | 180 | 396.7 |
| ≤5000 | ≤200 | 920×920×1600 | 36×36×63 | 220 | 484.9 |
Medium voltage control cabinet in electric submersible pump
| Voltage | Current | Size | Weight | ||
|---|---|---|---|---|---|
| V | A | mm | in | kg | lb |
| 1200 | 100 | 500×600×1700 | 20×24×67 | 282 | 621.5 |
| 2000 | 120 | 500×600×1700 | 20×24×67 | 298 | 656.8 |
| 3000 | 150 | 600×800×1700 | 24×31×67 | 340 | 749.4 |
