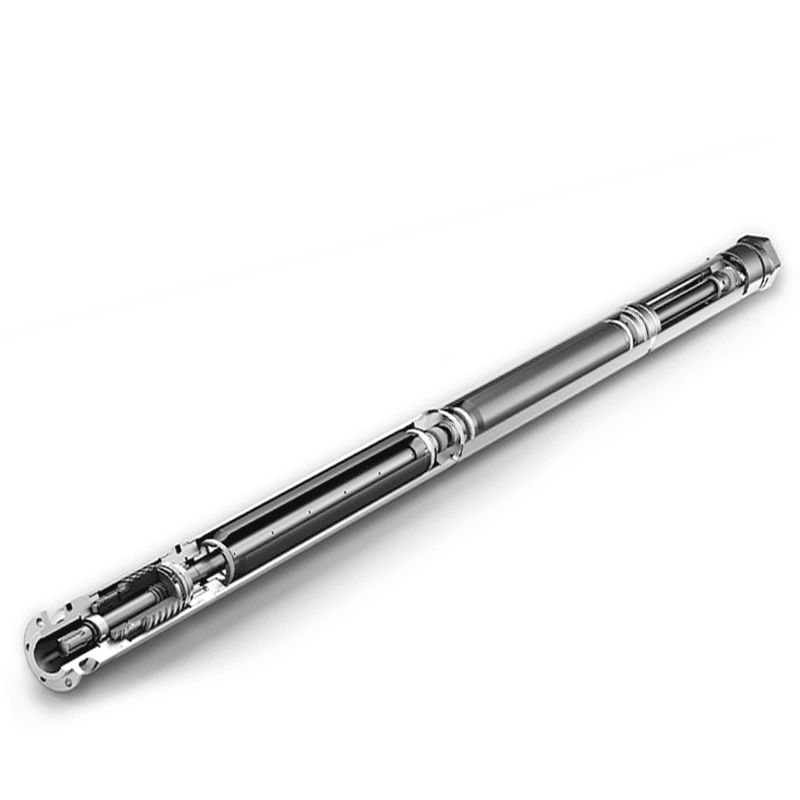

Features
- Multiple protector chamber types available: labyrinth, rubber bag, and combined chamber.
- Configurable designs based on well conditions and customer-specific requirements.
- Full support including spare parts supply, assembly services, and complete unit delivery.
Options
- Chamber Type: Labyrinth, Rubber Bag, Combined
- Category: Standard, High Load, Sand-Proof, Anti-Corrosion
| Item | Optional Material | Other |

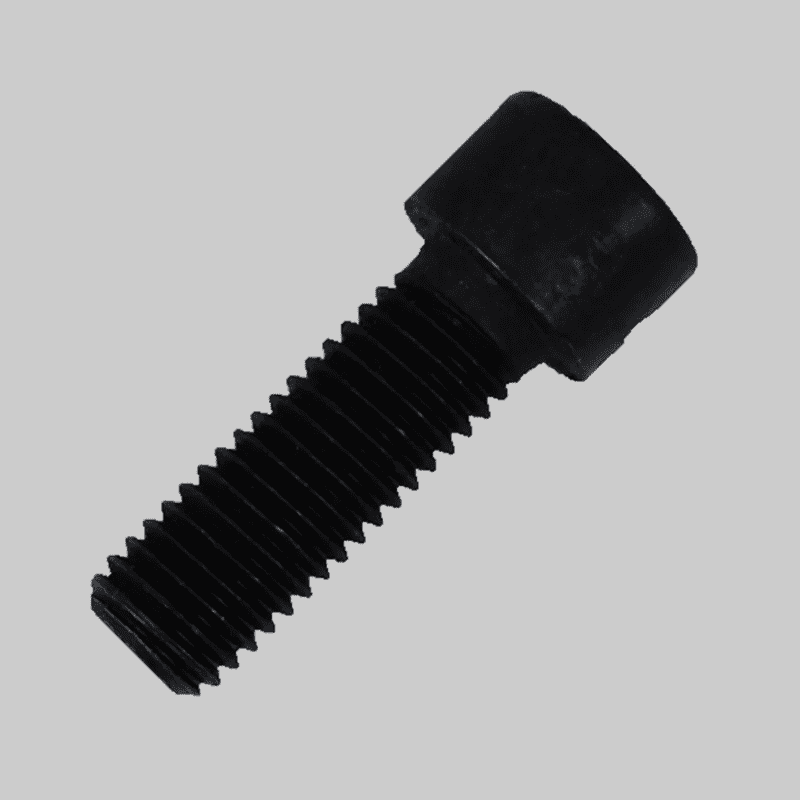

| Fasteners | S-Trim 、M-Trim | customized material |

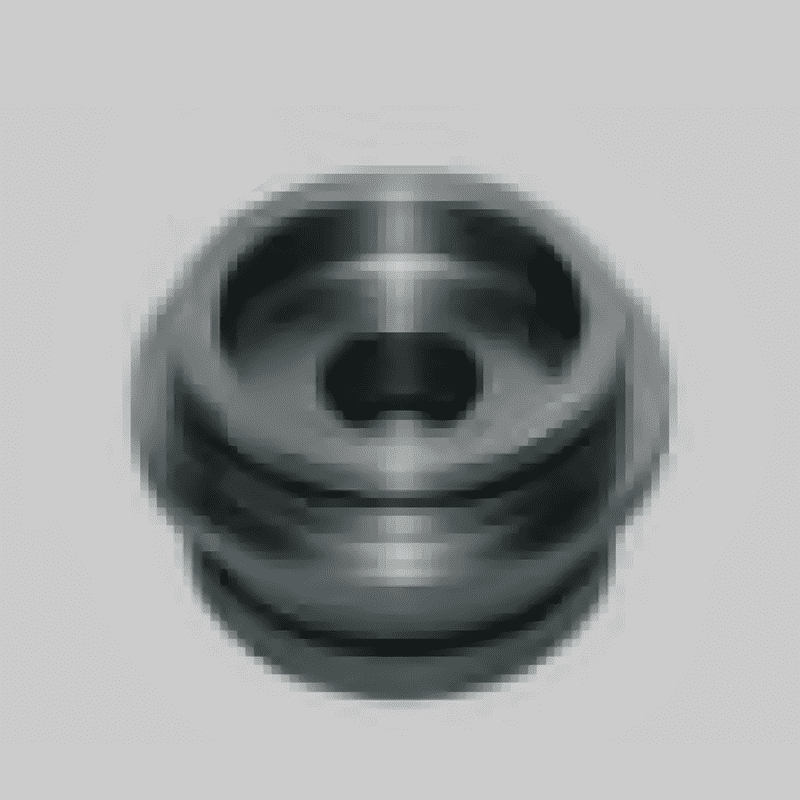

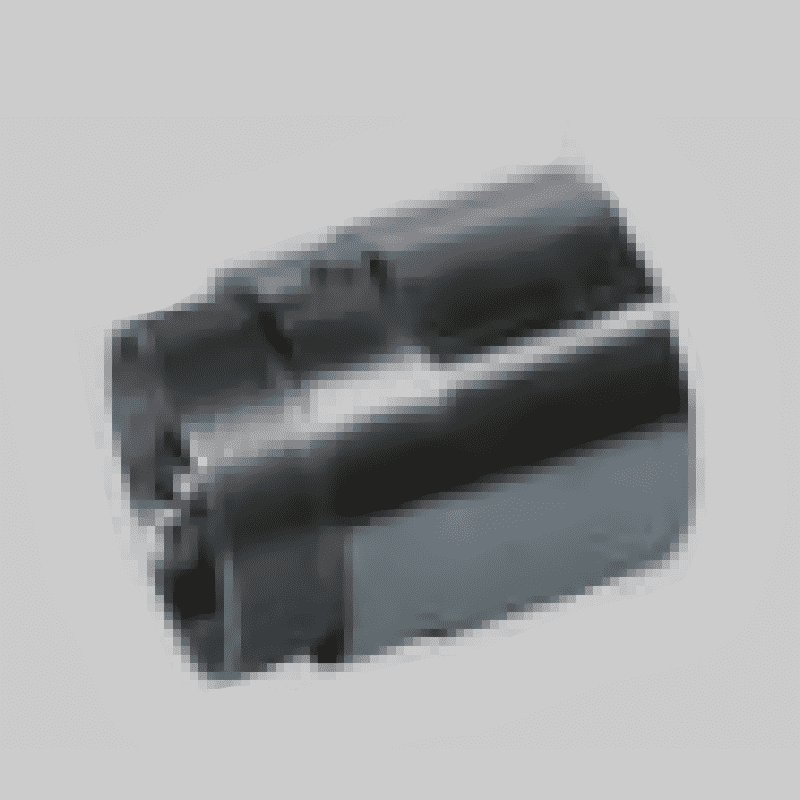

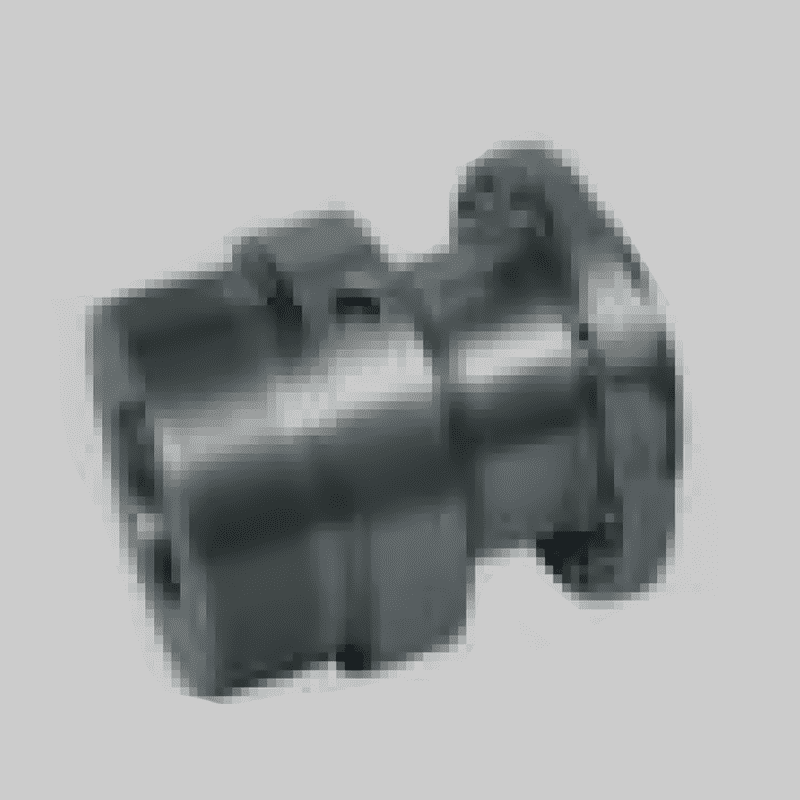

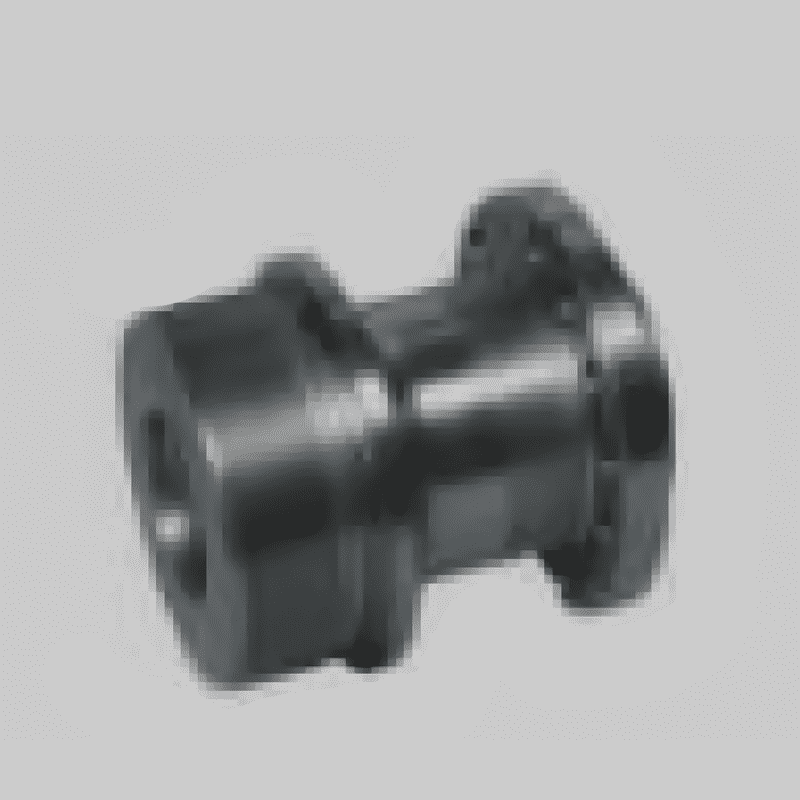

| Head and Base | CS、304、316、416、9Cr1Mo、Duplex | |

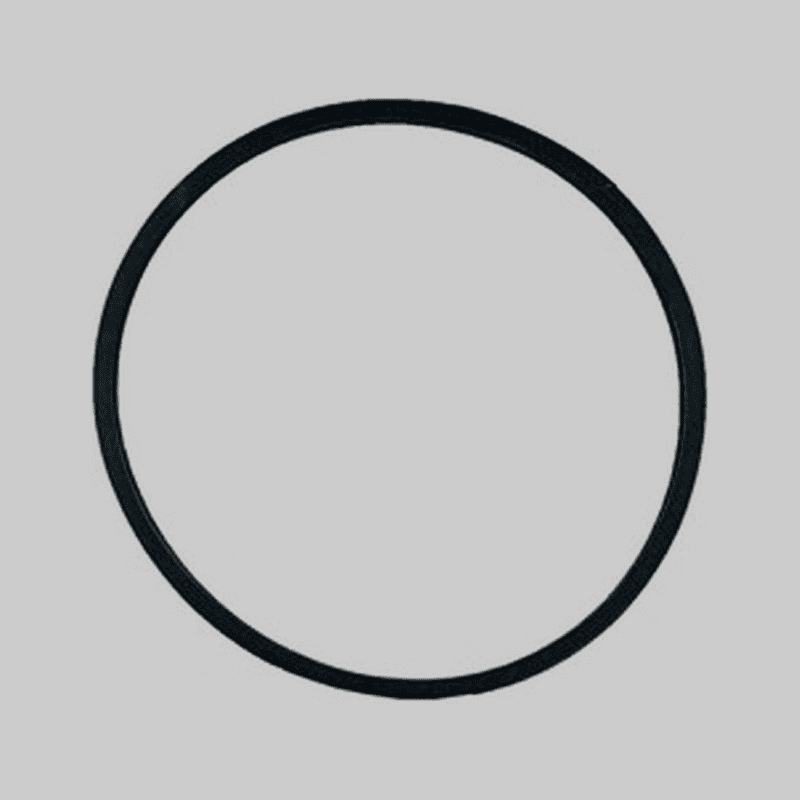

| O-Ring | HSN、FKM、AFLAS | |

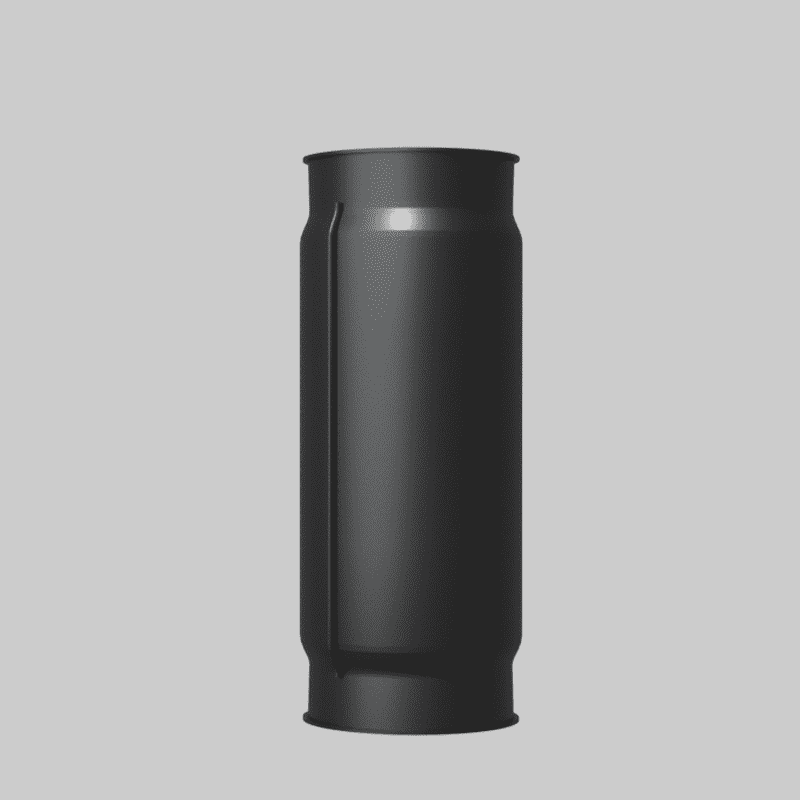

| Bag | HSN、FKM、AFLAS | |

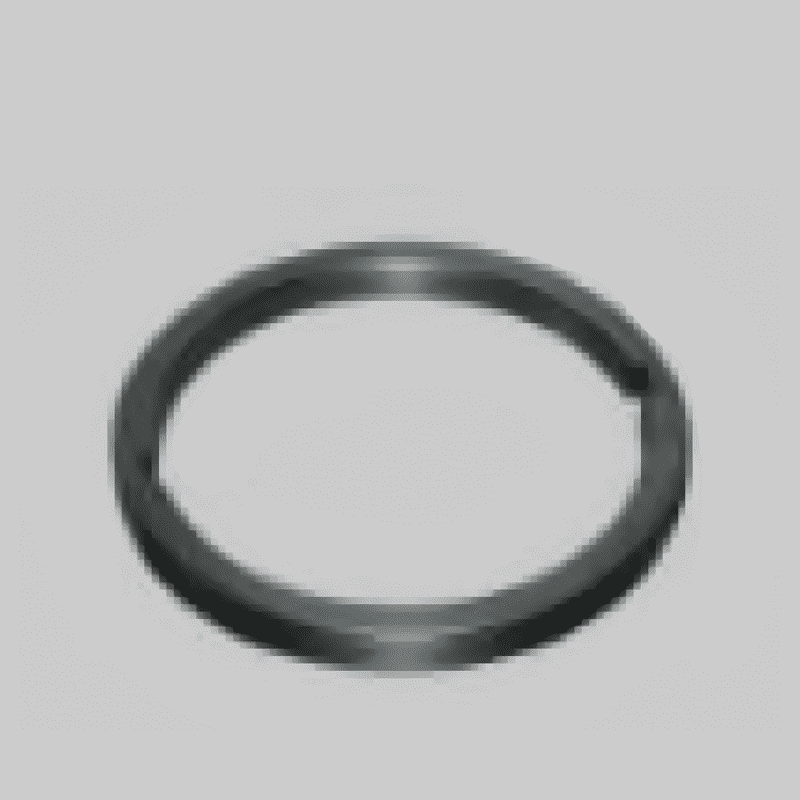

| Snap Ring | 304、Monel | |

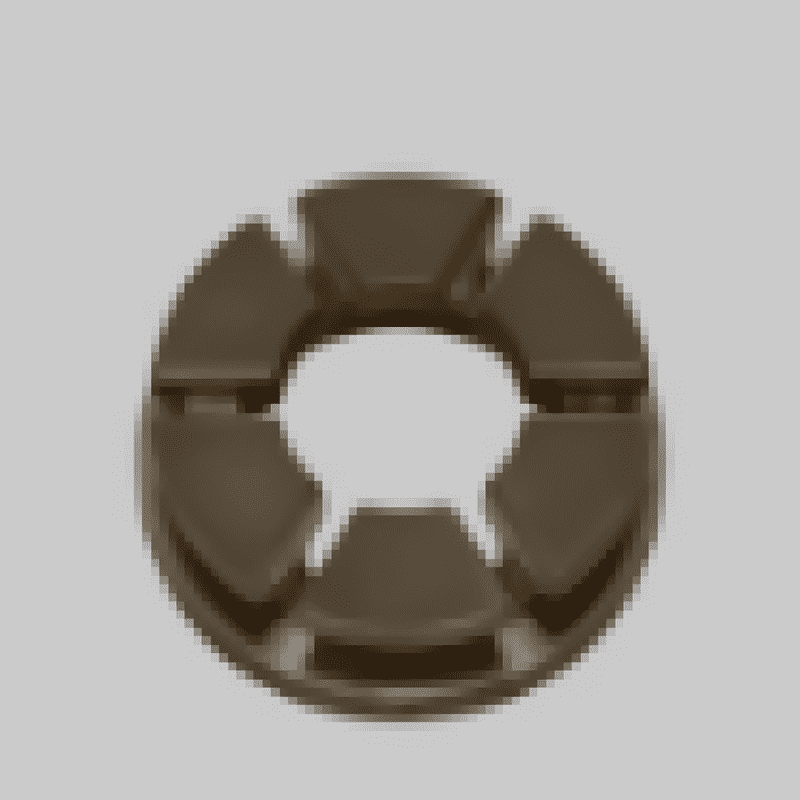

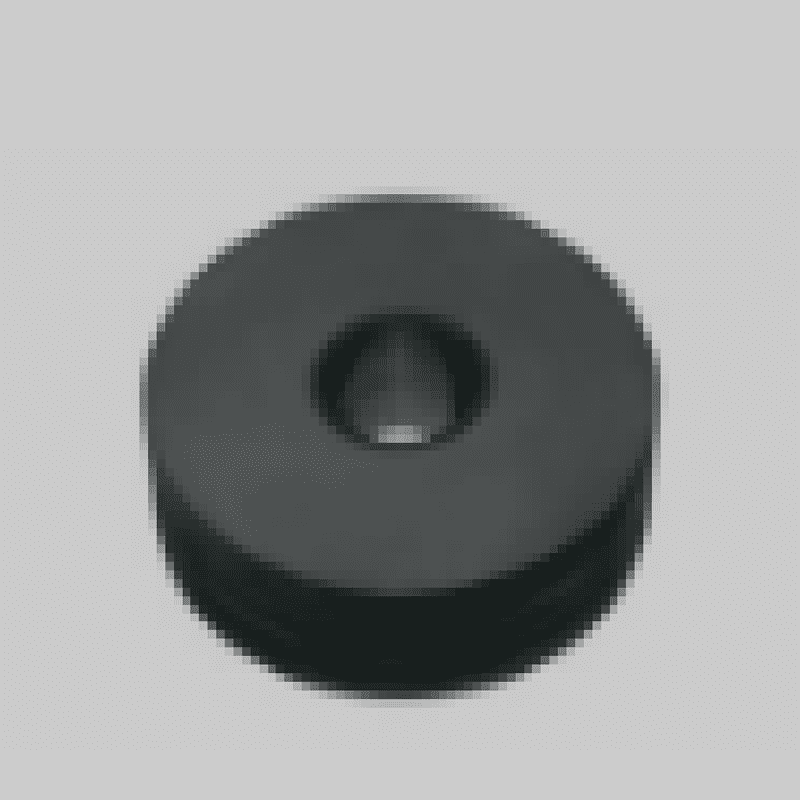

| Thrust bearing | Bronze、PEEK | |

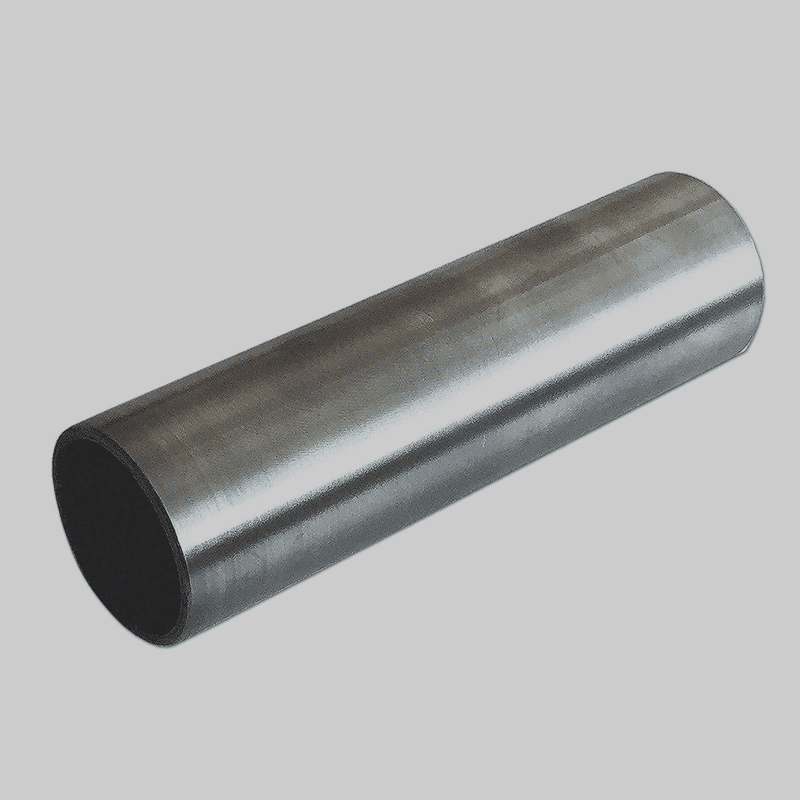

| Housing | CS、304、316、416、9Cr1Mo | |

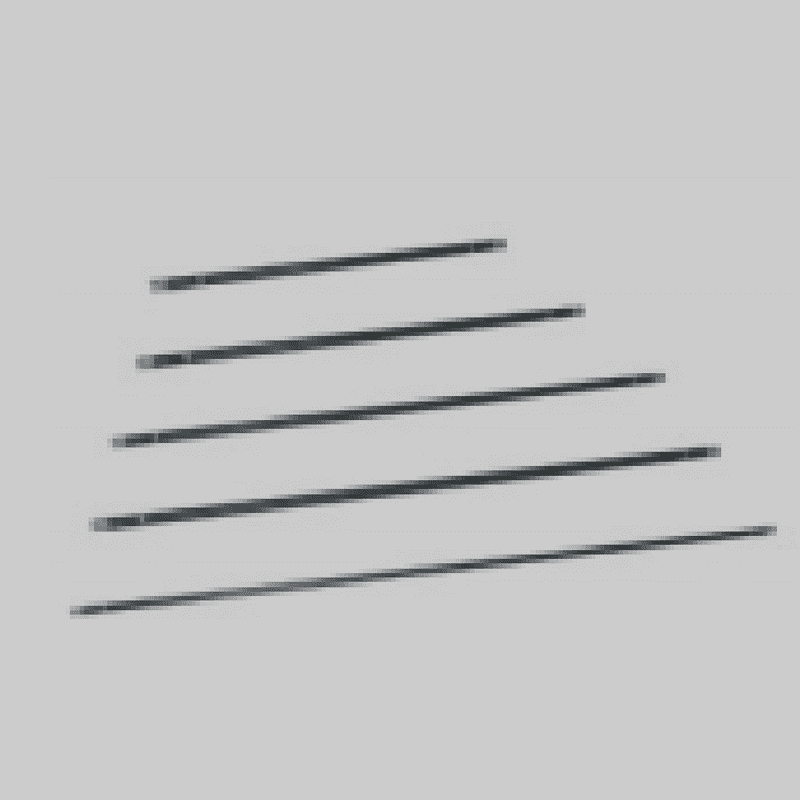

| Shaft | Monel K-500、Inconel | |
| Plug | CS、Monel K-500 | |
| D&F Valve | 304、316、Monel R-405 |
